Advanced Plotting
Previous notebooks [006_statistics_quickstart, 007_parametric, 008_non-parametric] show some examples of plot modifications.
This notebook will give further examples for modifying plots. Hopefully users will find a style that they like for that matches their projects.
py50 wraps Statannotations, which is built on top of Seaborn and Matplotlib. Many customizations that work for Seaborn and Matplotlib should work for py50 plots. Of course there are tons of customizations and I have not tested them all. If there are issues, please let me know.
[1]:
from py50 import Stats, Plots
import seaborn as sns
from matplotlib import pyplot as plt
Load dataset. The Seaborn tips dataset will be used for plotting and generating examples.
[2]:
data = sns.load_dataset("tips")
# Initialize Class
tips_stats = Stats(data)
tips_stats.show(2)
[2]:
| total_bill | tip | sex | smoker | day | time | size | |
|---|---|---|---|---|---|---|---|
| 0 | 16.99 | 1.01 | Female | No | Sun | Dinner | 2 |
| 1 | 10.34 | 1.66 | Male | No | Sun | Dinner | 3 |
The Plots() class was written to recalculate the statistics. Essentially, the same statistic result from the Plots() should match with Stats(). As this tutorial will work with Mann-Whitney U tests, the statistics results will be printed here and can be used to check the plot results.
[3]:
mannu = tips_stats.get_mannu(value_col='tip', group_col='day')
mannu
[3]:
| A | B | U-val | p-val | significance | RBC | CLES | |
|---|---|---|---|---|---|---|---|
| 0 | Sun | Sat | 3960.0 | 0.029497 | * | 0.197822 | 0.598911 |
| 1 | Sun | Thur | 2956.5 | 0.010006 | * | 0.254881 | 0.627441 |
| 2 | Sun | Fri | 910.5 | 0.079741 | n.s. | 0.261080 | 0.630540 |
| 3 | Sat | Thur | 2907.5 | 0.417663 | n.s. | 0.078050 | 0.539025 |
| 4 | Sat | Fri | 845.0 | 0.881937 | n.s. | 0.022384 | 0.511192 |
| 5 | Thur | Fri | 561.0 | 0.758381 | n.s. | -0.047538 | 0.476231 |
Plot Test Types
py50 includes plotting for 4 types of plots -> boxplot, barplot, violinplot, and swarmplot
All plots essentially take in the same parameters. At least four parameters are needed to generate the plot. The plots are essentially “re-running” the statistics, so each plot has to be notified for a specific test.
Reminders for tests can be called using the following function:
[4]:
Plots.list_test()
List of tests available for plotting: 'tukey', 'gameshowell', 'pairwise-parametric', 'pairwise-rm', 'pairwise-mixed', 'pairwise-nonparametric', 'wilcoxon', 'mannu', 'kruskal''kruskal'
Basic Plot
Because all the plots use the same parameters, the plot types will be periodically switched in this notebook. Only the barplot contains specific parameters, which will be noted below.
A basic plot will be generated using the tips dataset. The Mann-Whitney U Test will be used as the example, which will be passed as test=’mannu’. Optionally, if users want the calculated results, they can pass the return_df=True parameter.
[5]:
# Initialize class
# tips_plot = Plots(mannu)
tips_plot = Plots(data)
tips_plot.show(2)
[5]:
| total_bill | tip | sex | smoker | day | time | size | |
|---|---|---|---|---|---|---|---|
| 0 | 16.99 | 1.01 | Female | No | Sun | Dinner | 2 |
| 1 | 10.34 | 1.66 | Male | No | Sun | Dinner | 3 |
[6]:
tips_plot.boxplot(test='mannu', value_col='tip', group_col='day')
[6]:
<statannotations.Annotator.Annotator at 0x10e293310>
Modifying Annotations

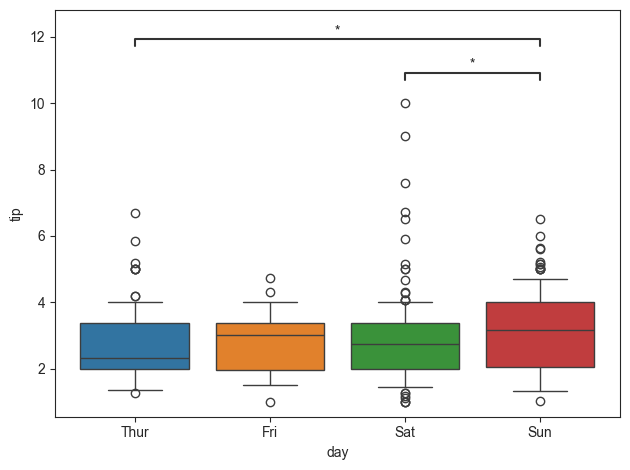

The annotations for the plot can be modified. For readability, the non-significant groups will not be annotated. This will be done by passing in the pairs parameters. Based on the order of the pairs, this could also change the order of the group. As I prefer to have the typical Sun-Sat week order, I have made the group order accordingly.
[7]:
pairs = [('Thur', 'Sun'), ('Sat', 'Sun')]
group_order = ['Sun', 'Thur', 'Fri', 'Sat']
tips_plot.boxplot(test='mannu', value_col='tip', group_col='day', group_order=group_order, pairs=pairs)
[7]:
<statannotations.Annotator.Annotator at 0x10e56cdc0>
The annotations can also be modified. The order of the annotation must match the order of the statistics table. This can be checked by passing the return_df parameter.
[8]:
pvalue_label = ['This is between Sun-Thur', 'This is for the weekend. Yay!']
tips_plot.boxplot(test='mannu', value_col='tip', group_col='day', group_order=group_order, pairs=pairs,
pvalue_label=pvalue_label, return_df=True)
[8]:
( A B U-val p-val significance RBC CLES
1 Sun Thur 2956.5 0.010006 * 0.254881 0.627441
0 Sun Sat 3960.0 0.029497 * 0.197822 0.598911,
<statannotations.Annotator.Annotator at 0x10e718040>)
Adding Title and Changing Fonts
Keeping visual information consistent and color coordinated is important for a project. The basic Seaborn font style rarely matches the style of a project (at least in my experience). This can be easily fixed using the Matplotlib customization features. These customizations should be called after generating the annotated plots.
[9]:
title = 'Hello Title!'
tips_plot.swarmplot(test='mannu', value_col='tip', group_col='day', pairs=pairs)
# Set Ticks
plt.xticks(fontname="Arial", fontsize=8, fontweight='bold', rotation=45)
plt.yticks(fontname="Arial", fontsize=18, fontweight='bold', rotation=180)
# Set Title and Labels
plt.xlabel("X Label", fontname='Times New Roman', fontstyle='italic', fontsize=14)
plt.ylabel("Y Label", fontname='Times New Roman', fontstyle='italic', fontsize=14)
plt.title(title, fontname='Times New Roman', fontweight='bold', fontsize=18)
plt.show()
That figure may look garish, but a lot of customizations were demoed! Many customizations were passed using matplotlib and additional args or kwargs can be found here.
Error Bars
As of this writing, Statannotations does not support Seaborn ≥0.12. As a result, the error bars between plots are inconsistent.
The boxplot can be modified by passing in the whis parameter. This will modify the bars of the box plot. Points outside the bars are outliers. By default, this is set to 1.5.
[10]:
tips_plot.boxplot(test='mannu', value_col='tip', group_col='day', pairs=pairs, whis=0.5)
[10]:
<statannotations.Annotator.Annotator at 0x10f07cb80>
In contrast, the barplot contains a few more options for modifying its error bars. By default, the confidence interval, or the ci parameter, is set to “sd” or standard deviation. However, this can be changed by passing in an integer. The capsize parameter will determine the size of the ends. Additionally, Seaborn contains kwargs that can further modify the errorbars. We will useerrcolor** as an example, which is part of the **kwarg for the py50 barplot.
Testing on my machine has not shown any issues with error bars on bar plot
[11]:
tips_plot.barplot(test='mannu', value_col='tip', group_col='day', pairs=pairs, errorbar="sd", capsize=0.2,
errcolor='purple')
[11]:
<statannotations.Annotator.Annotator at 0x10e11d3f0>
Color Palette
Color coding groups or data is important in communicating results. We can use that conditions into the palette parameter. This can be a string or a list of colors. The colors can be a name or a list of hex codes.
[12]:
# Palette as a string
palette = 'Oranges'
tips_plot.boxplot(test='mannu', value_col='tip', group_col='day', pairs=pairs, palette=palette)
[12]:
<statannotations.Annotator.Annotator at 0x10f0c0520>
[13]:
# Palette as a list
palette = ["#E69F00", "#56B4E9", "#009E73", "#F0E442"] # Colorblind palette
tips_plot.boxplot(test='mannu', value_col='tip', group_col='day', pairs=pairs, palette=palette)
[13]:
<statannotations.Annotator.Annotator at 0x10f25c6a0>
Reorder group

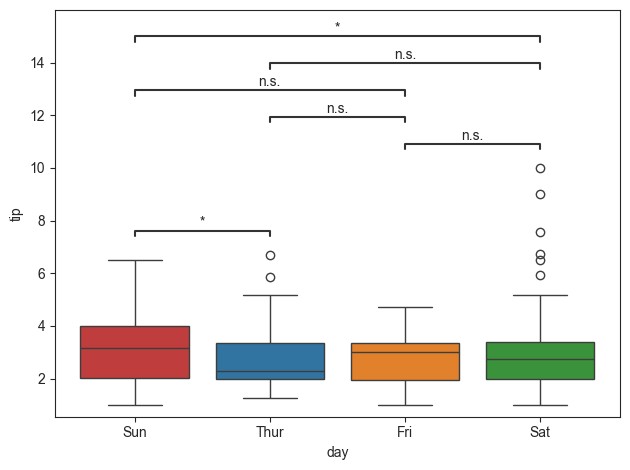

The groups can also be reordered. Keep in mind that if this is done, the annotations will also be moved modified accordingly. Let us order the group by the days of the week.
[14]:
group_order = ['Sun', 'Thur', 'Fri', 'Sat']
tips_plot.boxplot(test='mannu', value_col='tip', group_col='day', group_order=group_order)
[14]:
<statannotations.Annotator.Annotator at 0x10f31b2e0>
Moving Annotations Out of the Plot

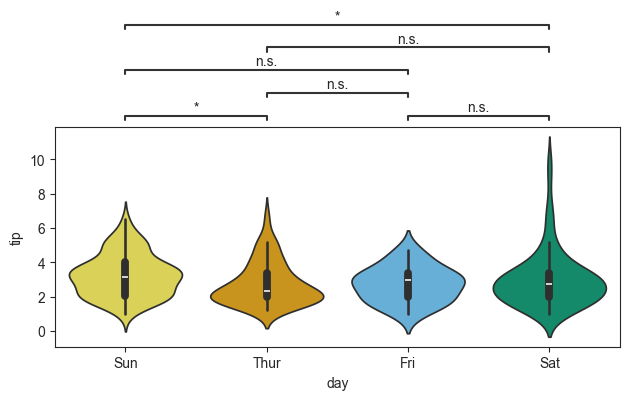

Depending on the dataset and the type of plot used, the annotations may interfere with the plot. The annotations can be moved “away” from the plot by passing the loc parameter. However, using this parameter will itnerfere with the plot title.
[15]:
tips_plot.violinplot(test='mannu', value_col='tip', group_col='day', group_order=group_order, palette=palette,
loc="outside")
[15]:
<statannotations.Annotator.Annotator at 0x10f409480>

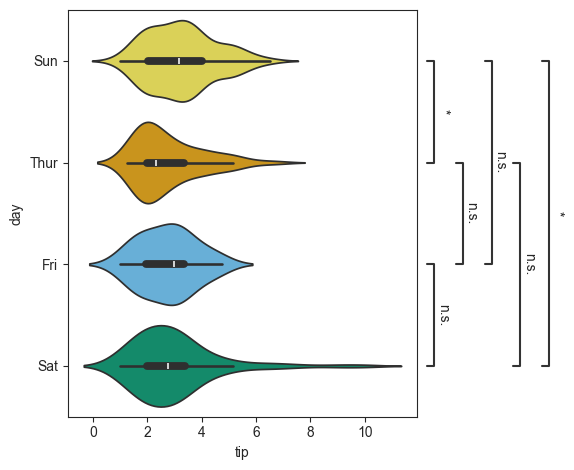

This can also be useful if the figure is rotated. Rotation of the figure is done using the orient parameter.
[16]:
tips_plot.violinplot(test='mannu', value_col='tip', group_col='day', group_order=group_order, palette=palette,
loc="outside", orient='h')
[16]:
<statannotations.Annotator.Annotator at 0x10f4bbc10>
Annotations with subgroups

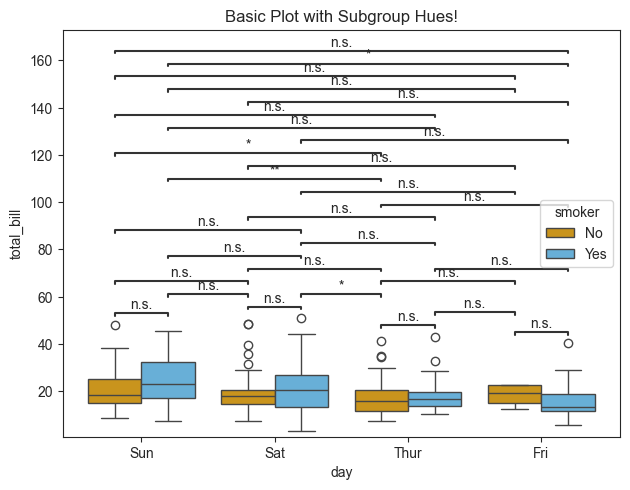

When including subgroups will modify the hues of box. This can be more complicated as there are more elements on the plot. It will also reduce the readability of the plot. Luckily if the group_col and subgroup_col is set to ‘day’ and ‘smoker’, respectively, only three groups show significance. Only those groups will be annotated.
Passing a color palette will change the hues of the groups. In this case, the plot will be color coded to the smoker group.
[17]:
title = 'Basic Plot with Subgroup Hues!'
palette = ["#E69F00", "#56B4E9"]
tips_plot.boxplot(test='mannu', value_col='total_bill', group_col='day', subgroup_col='smoker', palette=palette)
plt.title(title)
[17]:
Text(0.5, 1.0, 'Basic Plot with Subgroup Hues!')

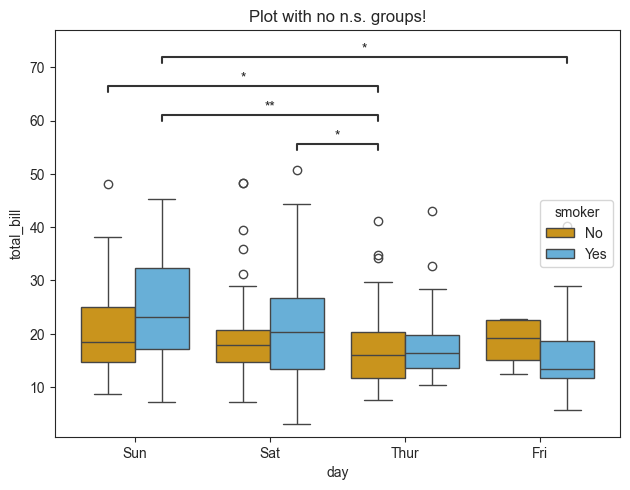

That looks… interesting. For the given dataset, there are a lot of Non-Significant groups. Their presence has cluttered the graph and reduced its readability. The n.s. labels can be quickly removed using the “hide_ns” boolean parameter.
[18]:
title = 'Plot with no n.s. groups!'
tips_plot.boxplot(test='mannu', value_col='total_bill', group_col='day', subgroup_col='smoker',
palette=palette, hide_ns=True)
plt.title(title)
[18]:
Text(0.5, 1.0, 'Plot with no n.s. groups!')
Pairs to annotate on teh plot can also be selected manually. Here only the groups showing significant differences are annotated.
[19]:
# Pairs to annotate
pairs = [
(('Sun', 'No'), ('Thur', 'No')),
(('Sat', 'Yes'), ('Thur', 'No')),
(('Thur', 'No'), ('Sun', 'Yes')),
(('Sun', 'Yes'), ('Fri', 'Yes'))
]
title = 'Plot with Subgroup Changes the Hues!'
tips_plot.boxplot(test='mannu', value_col='total_bill', group_col='day', subgroup_col='smoker', pairs=pairs,
palette=palette, return_df=True)
plt.title(title)
[19]:
Text(0.5, 1.0, 'Plot with Subgroup Changes the Hues!')

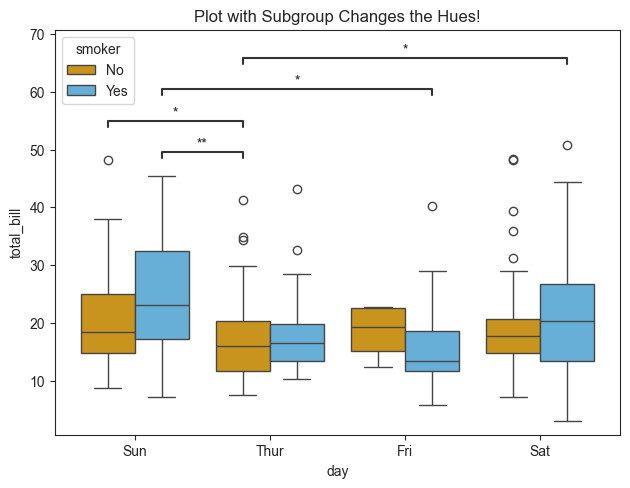

Finally, the groups on the X-axis can be organized in a specific manner. Here the data will be organized into the traditional Sun-Sat order.
[20]:
title = 'Plot with Subgroup Changes the Hues!'
# Group order
order = ['Sun', 'Thur', 'Fri', 'Sat']
tips_plot.boxplot(test='mannu', value_col='total_bill', group_col='day', subgroup_col='smoker', pairs=pairs,
palette=palette, group_order=order)
plt.title(title)
[20]:
Text(0.5, 1.0, 'Plot with Subgroup Changes the Hues!')

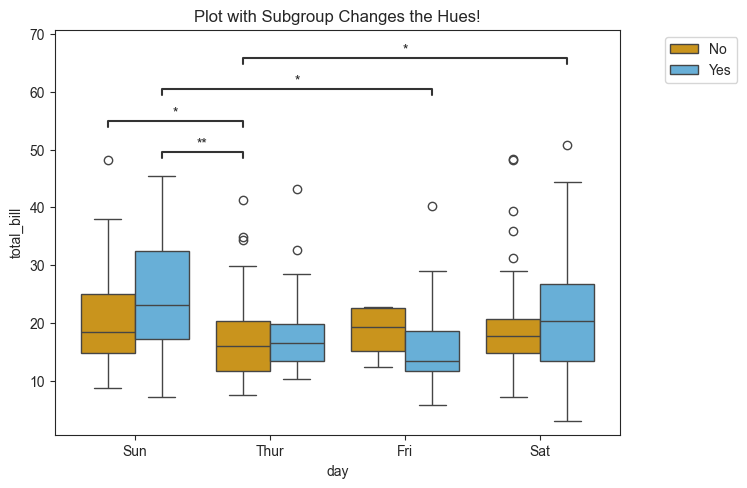

Figure Legend Placement
With the use of the subgroup, the plot will handle this input as the hue. As a result, a figure legend will be generated. Depending on the size of the data or parameter input, the legend may be located in a position obscuring the plot. This can be modified using plt.legend() as follows:
[21]:
tips_plot.boxplot(test='mannu', value_col='total_bill', group_col='day', subgroup_col='smoker', pairs=pairs,
palette=palette, group_order=order)
plt.legend(loc='upper right', bbox_to_anchor=(1.22, 1))
plt.title(title)
[21]:
Text(0.5, 1.0, 'Plot with Subgroup Changes the Hues!')
Plotting a Matrix of P Values
py50 also comes wrapped with scikit-posthocs. This requires a matrix of pvalues calculated from the py50.Stats module. The resulting heatmap will be generated based on the calculate matrix from the Stats module.
[22]:
example1 = tips_stats.get_mannu(value_col='tip', group_col='day')
example1
[22]:
| A | B | U-val | p-val | significance | RBC | CLES | |
|---|---|---|---|---|---|---|---|
| 0 | Sun | Sat | 3960.0 | 0.029497 | * | 0.197822 | 0.598911 |
| 1 | Sun | Thur | 2956.5 | 0.010006 | * | 0.254881 | 0.627441 |
| 2 | Sun | Fri | 910.5 | 0.079741 | n.s. | 0.261080 | 0.630540 |
| 3 | Sat | Thur | 2907.5 | 0.417663 | n.s. | 0.078050 | 0.539025 |
| 4 | Sat | Fri | 845.0 | 0.881937 | n.s. | 0.022384 | 0.511192 |
| 5 | Thur | Fri | 561.0 | 0.758381 | n.s. | -0.047538 | 0.476231 |
[23]:
matrix1 = Stats.get_p_matrix(data=example1, test='mannu')
matrix1
[23]:
| Fri | Sat | Sun | Thur | |
|---|---|---|---|---|
| Fri | 1.000000 | 0.881937 | 0.079741 | 0.758381 |
| Sat | 0.881937 | 1.000000 | 0.029497 | 0.417663 |
| Sun | 0.079741 | 0.029497 | 1.000000 | 0.010006 |
| Thur | 0.758381 | 0.417663 | 0.010006 | 1.000000 |
[24]:

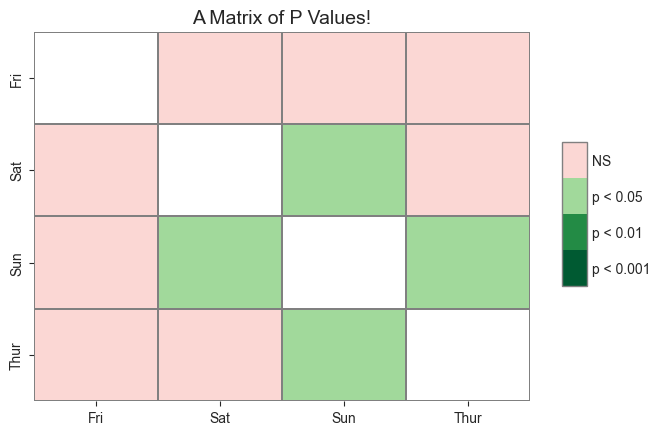

title = 'A Matrix of P Values!'
plot_matrix_1 = Plots(matrix1)
plot_matrix_1.p_matrix(title=title)
[24]:
(<Axes: title={'center': 'A Matrix of P Values!'}>,
<matplotlib.colorbar.Colorbar at 0x10f66a7d0>)

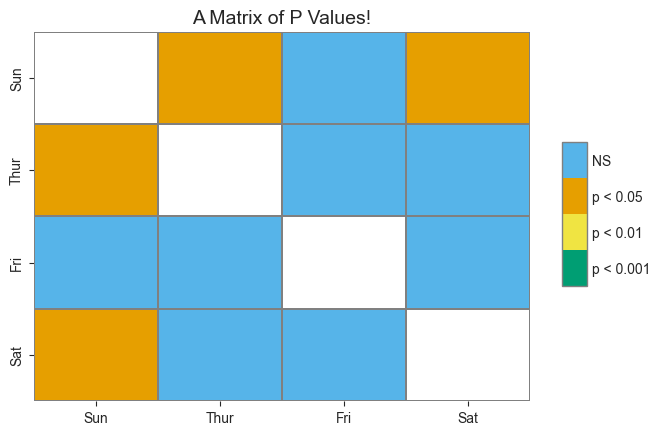

That looks good. However, the figure can be modified further. We will reorder the groups to follow the typical Sun-Sat week format and use a blind color palette.
First, the matrix from the Stats module must be reordered. This can be done by passing in a list of the groups. If the user prefers the groups to be in alphabetical order, then the alpha can be passed instead of a list.
The palette parameter is modified by passing in a list of colors. This can be a list of color names or a list of hexcodes.
[25]:
order = ['Sun', 'Thur', 'Fri', 'Sat']
palette = ["1", "#56B4E9", "#009E73", "#F0E442", "#E69F00"]
matrix2 = Stats.get_p_matrix(example1, test='mannu', order=order)
plot_matrix_2 = Plots(matrix2)
plot_matrix_2.p_matrix(title=title, cmap=palette)
[25]:
(<Axes: title={'center': 'A Matrix of P Values!'}>,
<matplotlib.colorbar.Colorbar at 0x10fdb8af0>)
A Matrix From a Cluttered Plot

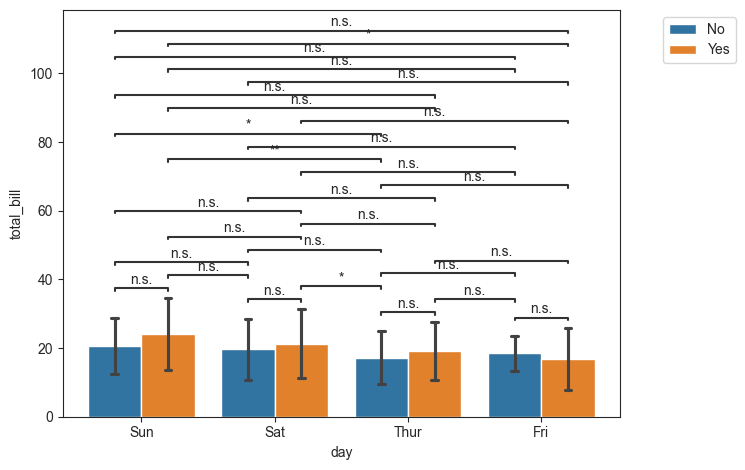

Previously, we generated a plot with subgroup annotations. This modifies the hue. Adding all the annotations on the plot vastly reduces its readability.
[26]:
tips_plot.barplot(test='mannu', value_col='total_bill', group_col='day', subgroup_col='smoker')
plt.legend(loc='upper right', bbox_to_anchor=(1.22, 1))
[26]:
<matplotlib.legend.Legend at 0x10fe473d0>
Fortunately, the pvalues can be drawn as a matrix.
Like before, the statistics must be calculated first using the get_X where X is the specific statistic test. The output table is then converted into a matrix using the get_p_matrix. Finally, it can be plotted using the Plot.p_matrix() function. Steps can be seen below.
[27]:
example2 = tips_stats.get_mannu(value_col='total_bill', group_col='day', subgroup_col='smoker')
matrix3 = Stats.get_p_matrix(example2, test='mannu')
matrix3
[27]:
| Sun-No | Sat-No | Sat-Yes | Fri-Yes | Thur-No | Thur-Yes | Sun-Yes | Fri-No | |
|---|---|---|---|---|---|---|---|---|
| Sun-No | 1.000000 | 0.428422 | 0.823521 | 0.051393 | 0.018167 | 0.392813 | 0.191027 | 0.683619 |
| Sat-No | 0.428422 | 1.000000 | 0.412393 | 0.112359 | 0.098890 | 0.635937 | 0.084238 | 0.874077 |
| Sat-Yes | 0.823521 | 0.412393 | 1.000000 | 0.116979 | 0.037041 | 0.563656 | 0.262149 | 0.720998 |
| Fri-Yes | 0.051393 | 0.112359 | 0.116979 | 1.000000 | 0.707217 | 0.151217 | 0.018338 | 0.395118 |
| Thur-No | 0.018167 | 0.098890 | 0.037041 | 0.707217 | 1.000000 | 0.262565 | 0.009704 | 0.510998 |
| Thur-Yes | 0.392813 | 0.635937 | 0.563656 | 0.151217 | 0.262565 | 1.000000 | 0.075961 | 0.964270 |
| Sun-Yes | 0.191027 | 0.084238 | 0.262149 | 0.018338 | 0.009704 | 0.075961 | 1.000000 | 0.286166 |
| Fri-No | 0.683619 | 0.874077 | 0.720998 | 0.395118 | 0.510998 | 0.964270 | 0.286166 | 1.000000 |
[28]:

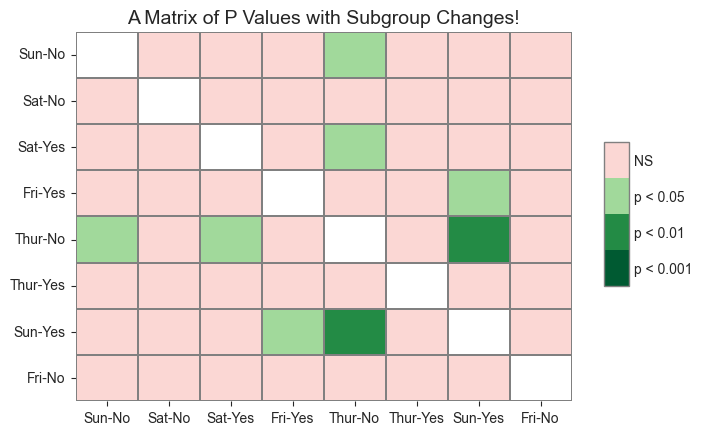

title = 'A Matrix of P Values with Subgroup Changes!'
plot_matrix_3 = Plots(matrix3)
plot_matrix_3.p_matrix(title=title)
[28]:
(<Axes: title={'center': 'A Matrix of P Values with Subgroup Changes!'}>,
<matplotlib.colorbar.Colorbar at 0x10fff99f0>)

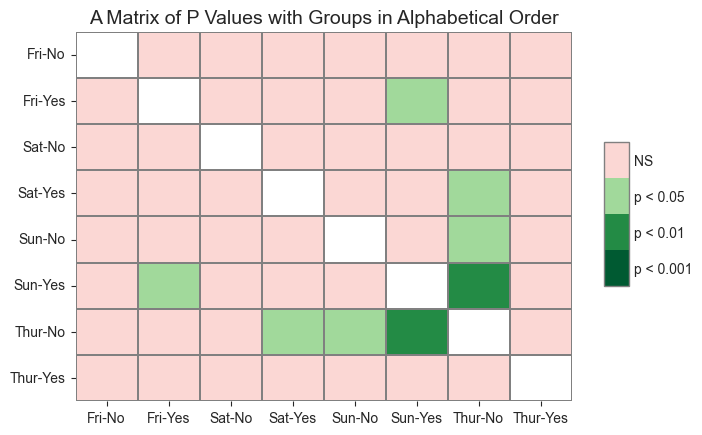

Looks good. But as seen above, I prefer the data to be organized better. This can be done by passing in a list of the groups in a specified order. Because this dataset has more groups, it will be alphabetized instead. This will be done by passing in the “alpha into the order parameter.
[29]:
title = 'A Matrix of P Values with Groups in Alphabetical Order'
matrix4 = Stats.get_p_matrix(example2, test='mannu', order='alpha')
plot_matrix_4 = Plots(matrix4)
plot_matrix_4.p_matrix(title=title)
[29]:
(<Axes: title={'center': 'A Matrix of P Values with Groups in Alphabetical Order'}>,
<matplotlib.colorbar.Colorbar at 0x10ff92c50>)
